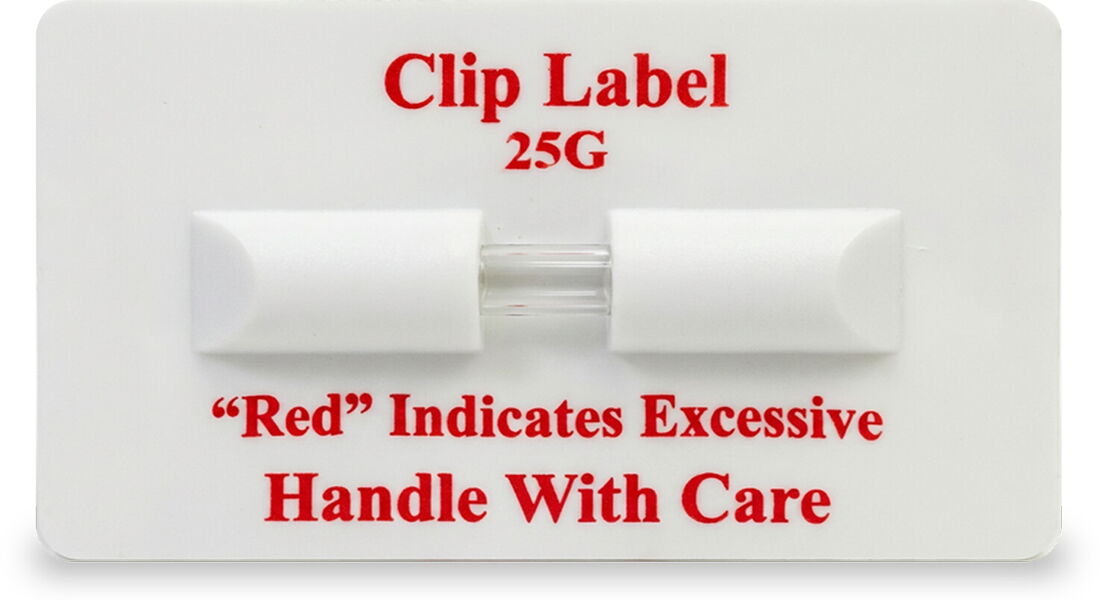

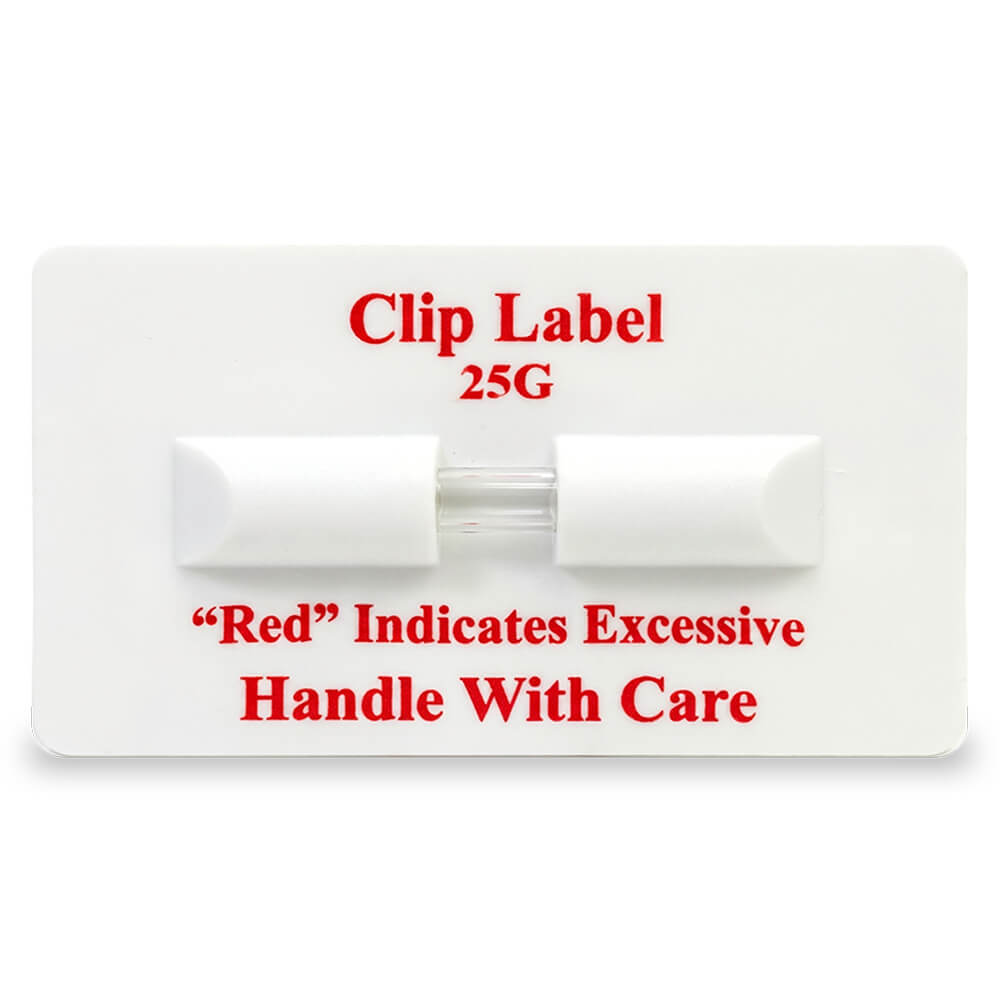

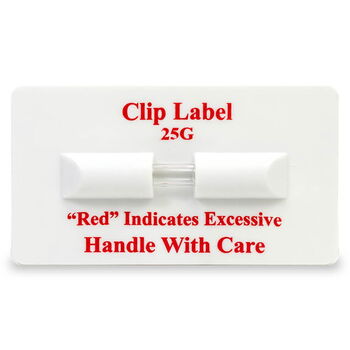

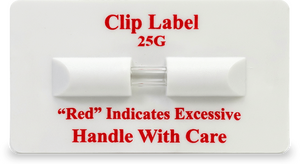

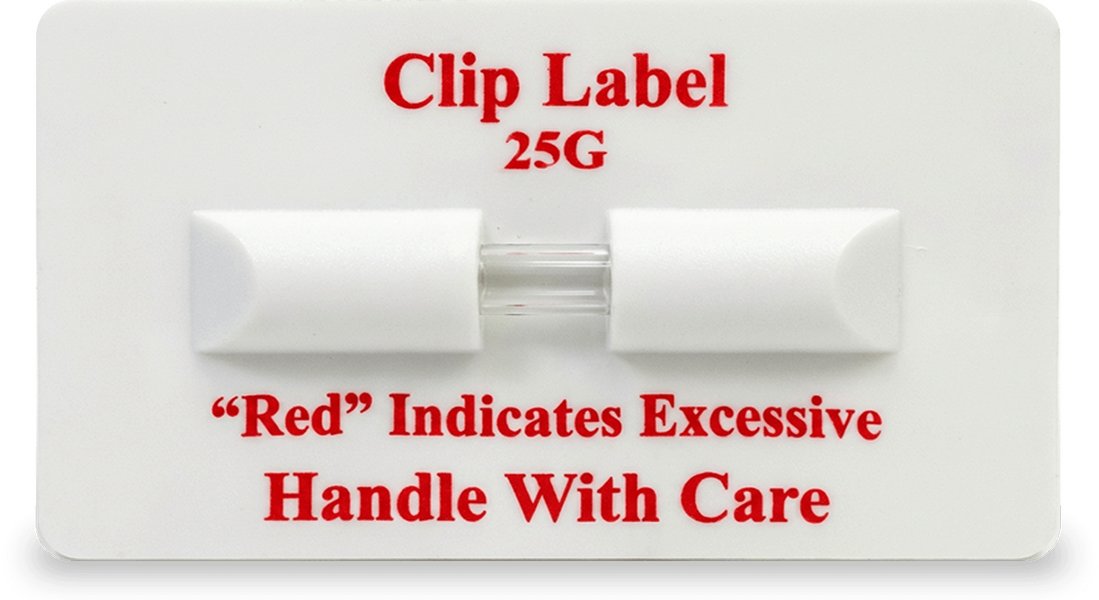

TellShock SingleClips

„ TellShock SingleClips work in the same way as the TELLSHOCK Labels. Attached directly to the product inside the packaging, they provide an unmistakable indication that the defined shock limit has been exceeded. .... ”

Nadja Weißkopf Team Transport Monitoring

Florian Meier Packaging Consultant

axes

monitoring

4500

KG max. weight

14,2

m³ max. volume

G min.

sensitivity

100

G max.

sensitivity

can not be activated

always active

OUR STRÖBEL HINT
We recommend TellShock SingleClips especially for monitoring directly at the product and in case of space problems.

Matthias Mandel sales manager

TECHNICAL DATA

	3 Achsen Überwachung
display	Single-Clips: no direction display
sensitivity	10G – 100G
shock duration	0,5 – 50ms
for weight	0 – 4500 kg
for volume	0 – 14,2 m³
tolerance	+/-15%
reaction to	single impact
operation	mechanical / liquid surface tension

can be activated?	NO always active
security	tamper-proof
how often usable?	once
mounting location on package	on / inside product, inside packaging
operating range	-25 °C to + 80 °C
shelf life	2 years
storage conditions	room temperature
mounting type	acrylic , self-adhesive
dimensions	see product variants below
PU	100 pieces / carton

INDICATION BEHAVIOUR

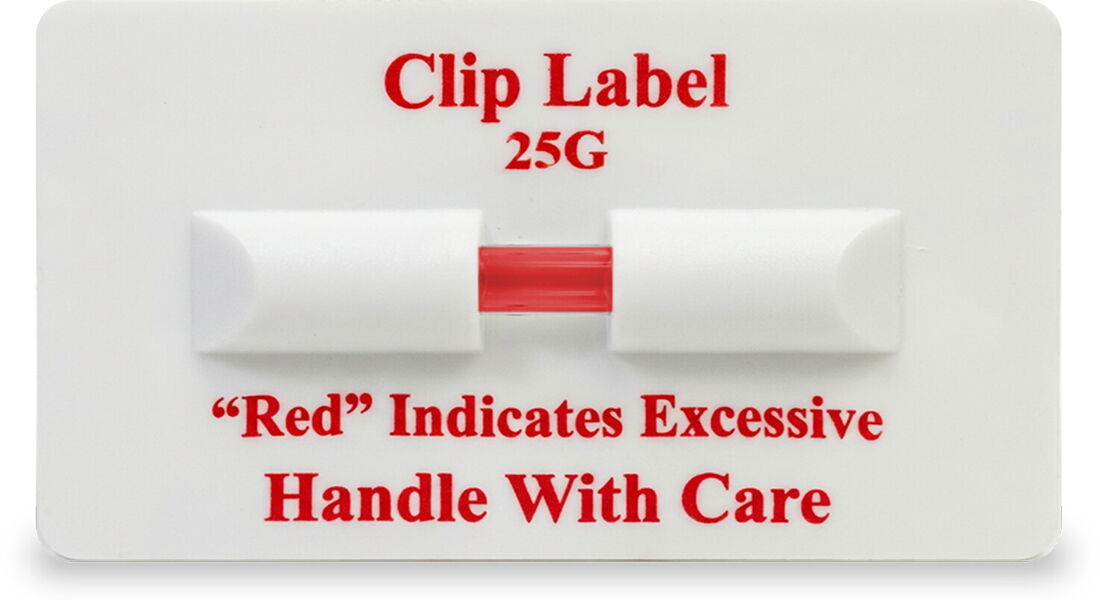

When the indicator turns red ...

An activated TellShock SingleClips on your product signals that the product has been exposed to an extreme impact. From onsite production to long-term monitoring during the whole production chain - by attaching it directly inside or onto the product, a permanent control of the respective device is possible. Any damage caused by production errors or incorrect handling can thus be identified and analysed.

Note

Under certain circumstances, it is possible that damage has occurred without the indicator having been activated. Likewise, it is possible that an indicator has turned red without any damage having occurred to the packaged goods.

ADVANTAGES TellShock SingleClips

immediate display

potential damage is instantly indicated by TellShock SingleClips and logged at destination

up to 50% less transport damage

reduce the occurrence of transport damage in many cases by more than 50%.

avert damage claims

possible damage claims can be reduced or avoided.

easier claims settlement

damage settlement takes place mainly between the carrier and the recipient.

Increase the trust of your customers

customer satisfaction improves as it is ensured that the goods arrive intact.

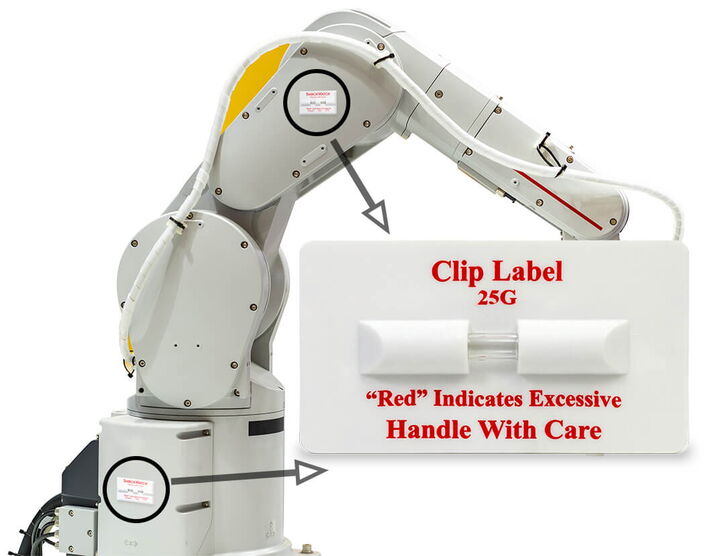

CORRECT PLACEMENT

TellShock SingleClips are always attached directly to the product inside the packaging.

Find a place that is as stable and flat as possible for attaching the clip.

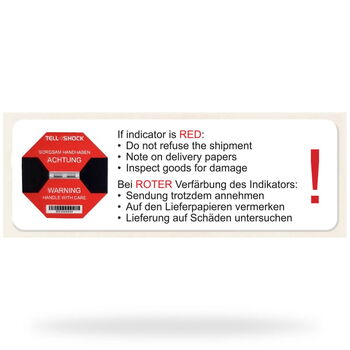

STRÖBEL IMPORTANT INSTRUCTIONS

Be sure to share the following information with your clients:

RECEIVER: Immediate inspection
of TellShock SingleClips !

Please immediately inspect upon receipt TellShock SingleClips and the incoming goods for damage!

If the indicator is activated (triggered):
Accept the goods anyway.

RECEIVER: record status

Note the colour change of the TellShock SingleClips in the delivery papers and have the carrier confirm it on the shipping document. This is the only way you can report damage to the carrier.

If you notice damage to the goods, leave them in the original packaging and ask for immediate inspection by the carrier.

RECEIVER: ensure compensation claims against third parties!

Road transport:
signed confirmation by the driver or carrier on the original waybill with company details and lorry registration number.
Rail transport:
recording & confirmation of facts with deutsche bahn ag

VARIANTS

All TellShock SingleClips are available in the following sensitivities

25g 37g 50g 75g 100g
