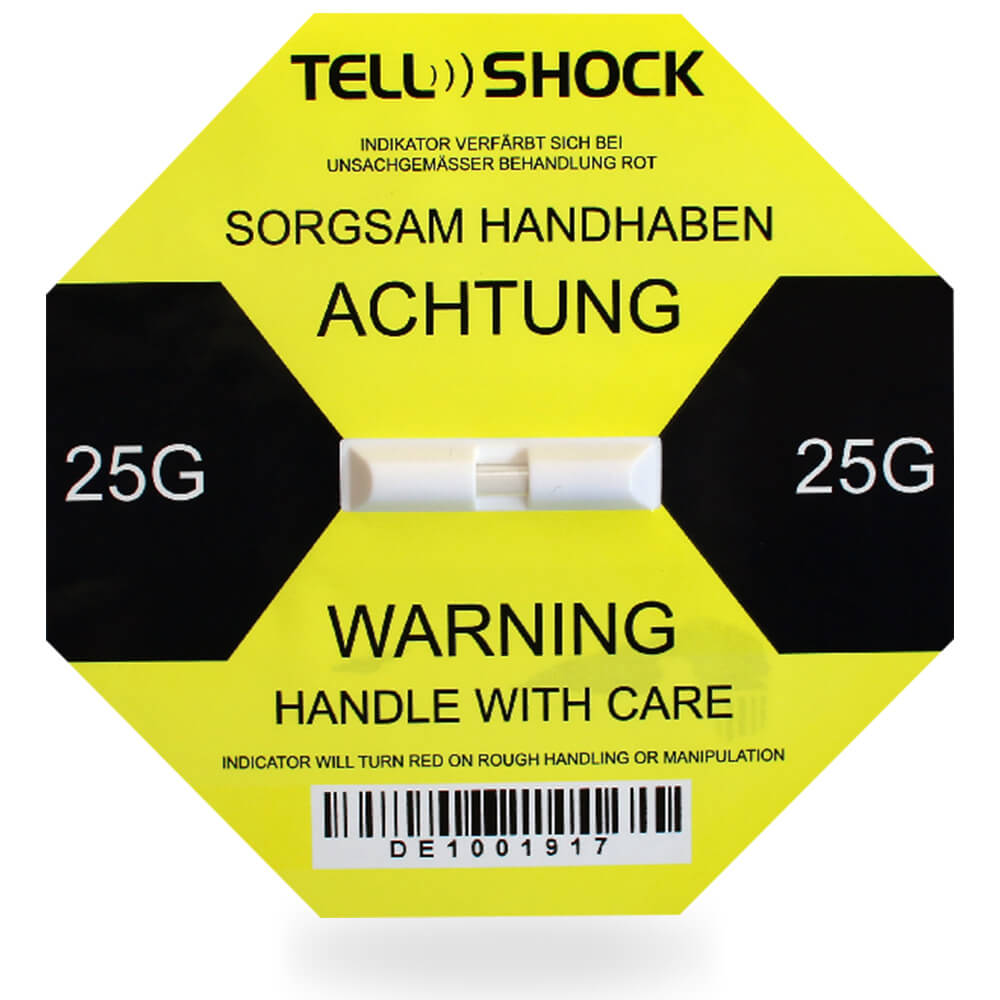

„ The TELLSHOCK label consists of a poweful adhesive sticker with a precision glass tube sensor. If the defined impact force of the TELLSHOCK is exceeded, the surface tension of the warning liquid breaks and irrevocably colors the indicator red. Each TELLSHOCK label is provided with an individual serial number, which prevents manipulation.... ”
Nadja Weißkopf Team Transport Monitoring
Florian Meier Packaging Consultant
3
axes
monitoring
1.000
KG max. weight
whole package
1,4
m³ max. volume
whole package
10
G min.
sensitivity
100
G max.
sensitivity
No
can not be activated
always active
TellShock Label Label is the classic impact indicator. It is ideal for general monitoring of shocks from all directions.
Perfect for smaller to (medium) heavy packages.Matthias Mandel Sales Manager
TECHNICAL DATA
|
3 axes monitoring |
| display | without direction indicator |
| sensitivity | 10g 15g 25g 37g 50g 75g 100g |
| shock duration | 0,5 – 50ms |
| for weight | 0 – 1000 kg |
| for volume | 0,001 – 1,35+ m³ |
| tolerance | +/-15% |
| reaction to | single impact |
| operation | mechanical / liquid surface tension |
| can be activated? | NO always active |
| security | tamper-proof, consecutive serial number with barcode |
| how often usable? | once |
| mounting location on package | outside on package |
| operating range | -25 °C to + 80 °C |
| shelf life | 2 years |
| storage conditions | room temperature |
| mounting type | acrylic , self-adhesive |
| dimensions | 96,52 x 96,52 mm |
| PU | 50 pieces / carton |
ADVANTAGES TellShock Label
immediate display
potential damage is instantly indicated by TellShock Label and logged at destination
up to 50% less transport damage
reduce the occurrence of transport damage in many cases by more than 50%.
avert damage claims
possible damage claims can be reduced or avoided.
easier claims settlement
damage settlement takes place mainly between the carrier and the recipient.
Increase the trust of your customers
customer satisfaction improves as it is ensured that the goods arrive intact.
Display Behaviour TELLSHOCK
When the indicator turns red ...
This red indicator cannot be reversed. It is immediately obvious that your product has been handled improperly. Packages with a non-activated (= WHITE) indicator have normally survived transport without damage. Your customer's incoming goods inspection can focus on packages with activated (= RED) indicators.
Note
Under certain circumstances, it is possible that damage has occurred without the indicator having been activated. Likewise, it is possible that an indicator has turned red without any damage having occurred to the packaged goods.
The freight process in 5 steps
How to integrate TellShock Label into your shipping concept
STRÖBEL IMPORTANT INSTRUCTIONS
Be sure to share the following information with your clients:
How to attach

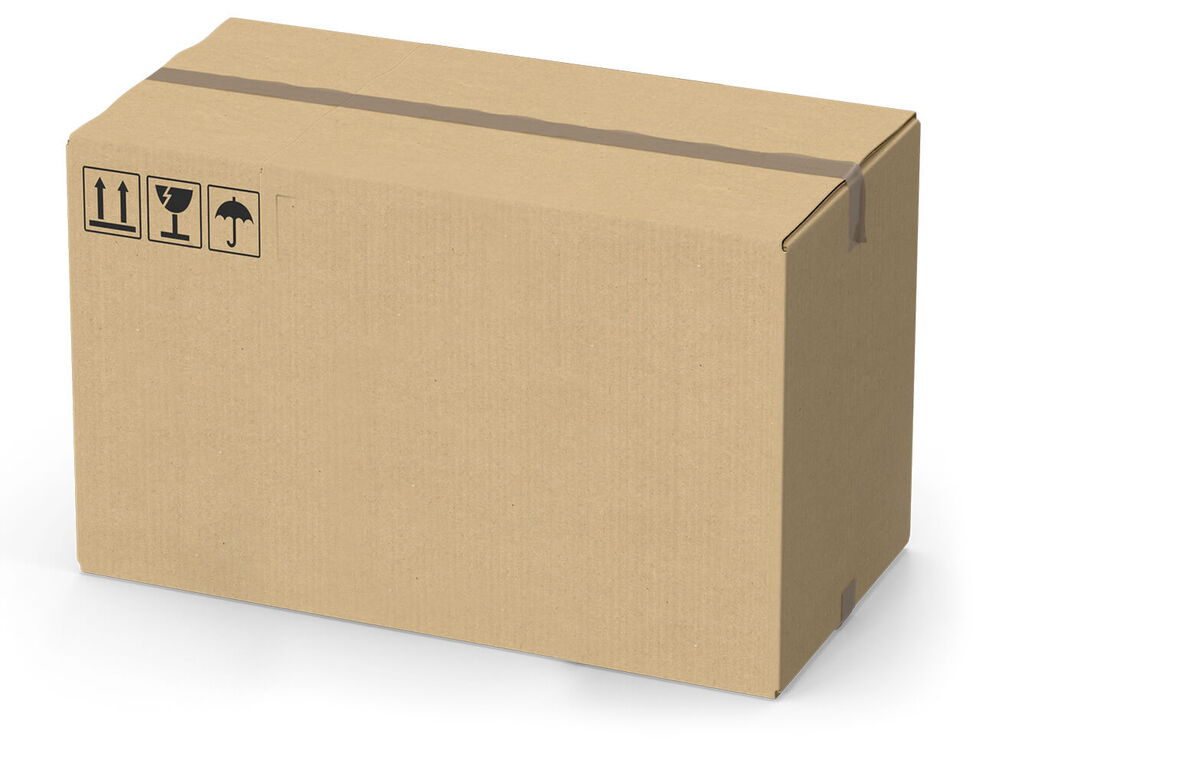

Correct placement

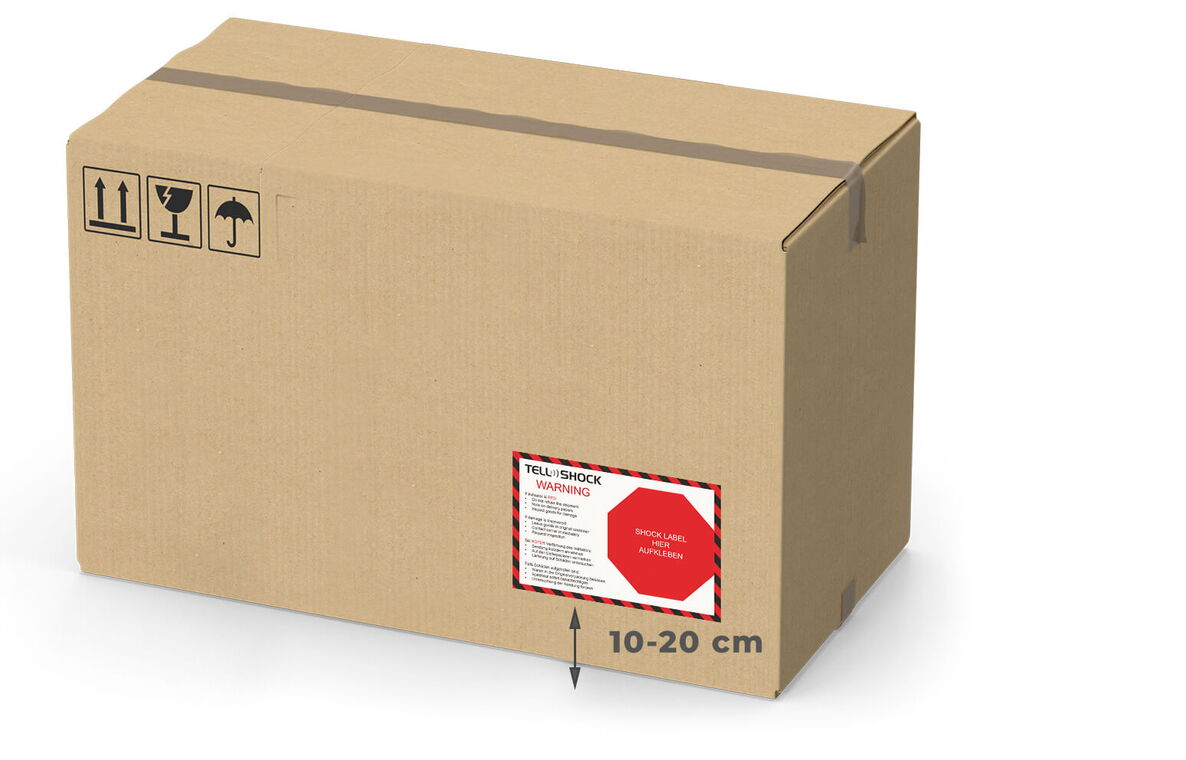

TellShock Label Indicators should always be placed on the long side towards the corner of the packaged goods. The recommended height is approx. 10-20 cm from the bottom of the pallet or package.
Never place TellShock Label indicators on the top or in the middle of the side wall. These sides can have high vibrations which may cause the shock indicator to be triggered.
It's this easy

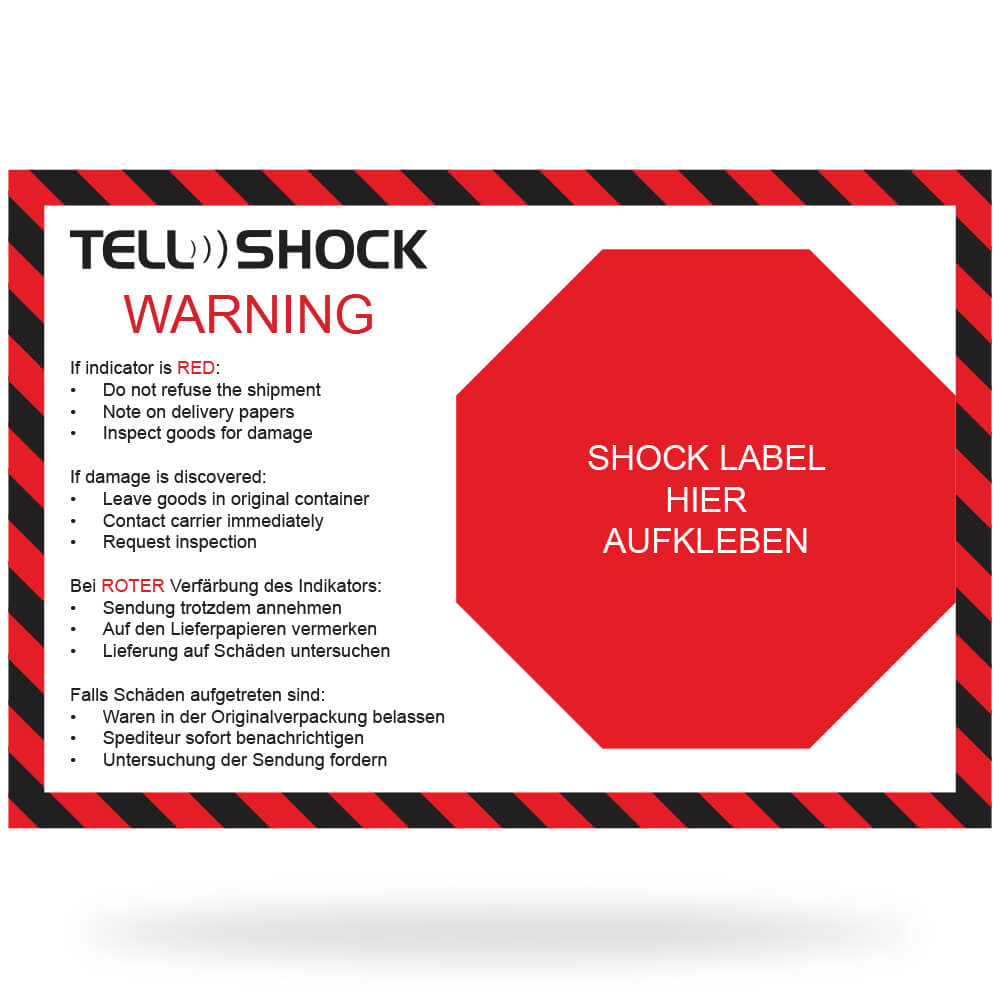

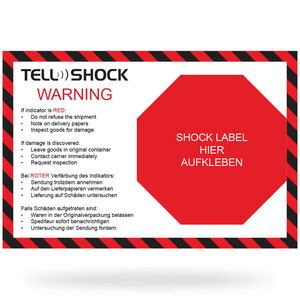

- stick the large warning sticker on the packaged goods
- stick the TELLSHOCK Label Indicator on the marked field on the warning label

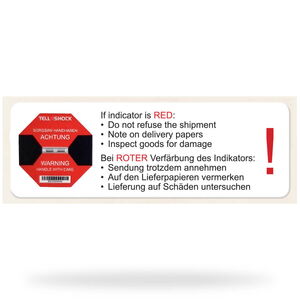

- stick the delivery note sticker on your outgoing delivery note
- write the serial number of the TELLSHOCK Indicator on the shipping documents
- apply the optional warning tape
Multiple TELLSHOCK?
The best control is achieved by attaching two TELLSHOCK indicators. For transport goods of approx. 1.00 m edge length and above, you must use one TELLSHOCK indicator on each of the diagonally opposite sides at the same distance from the floor.
For tall packages, it is recommended to place a TellShock Label indicator at an upper corner of the package to register impacts at the upper edge.
PACKAGE CONTENTS

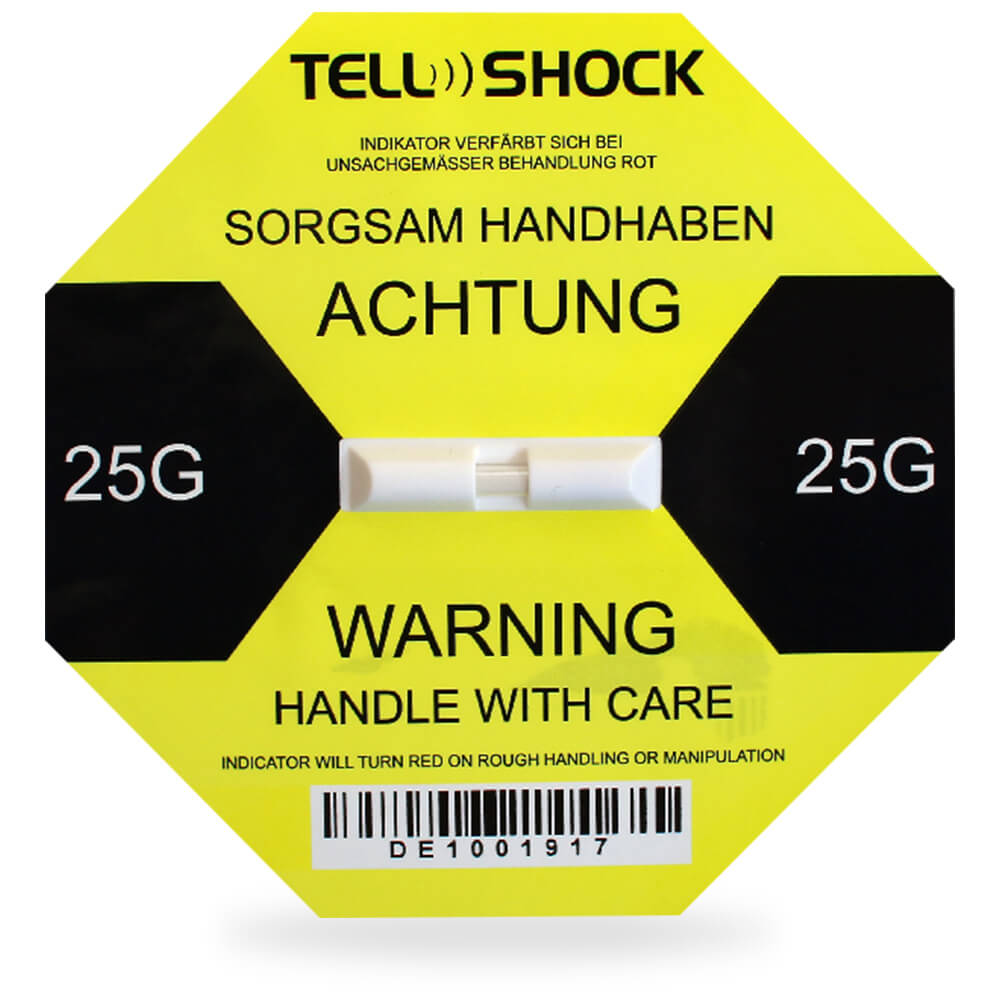

Quantity: 50 pieces / carton and each TellShock Label unit consists of...
CONFIGURATOR

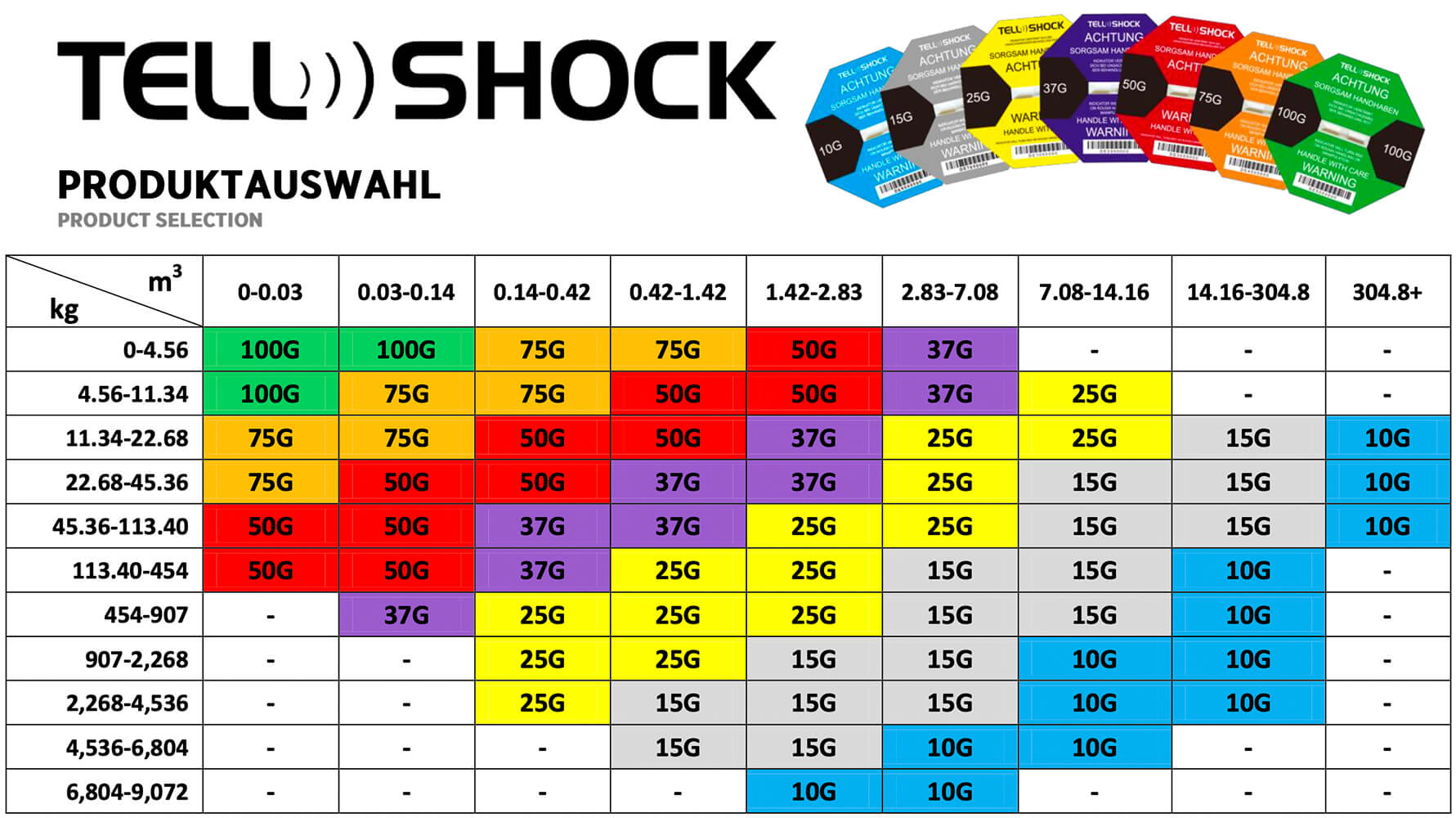

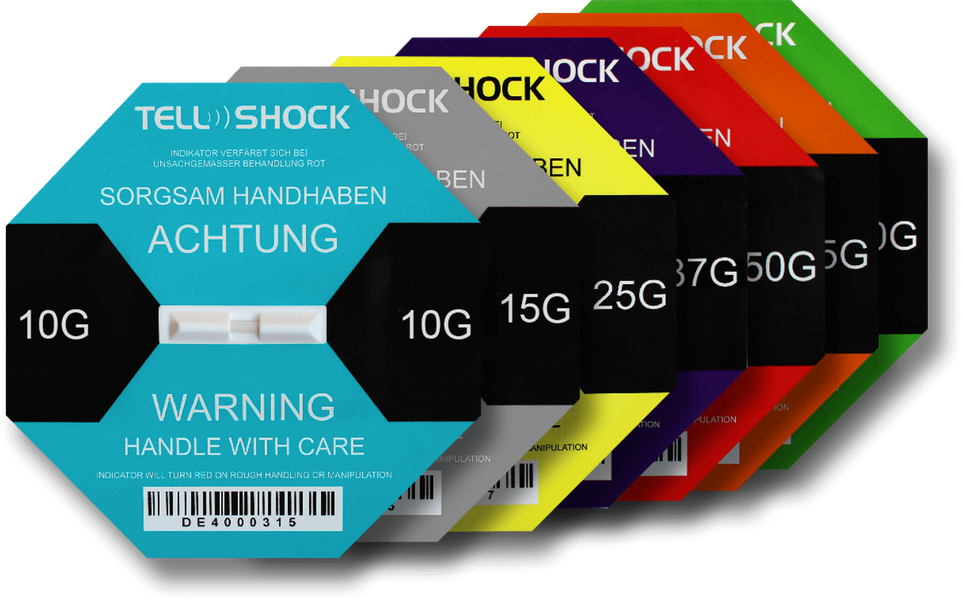

All TellShock Label are available in the following sensitivities
10g 15g 25g 37g 50g 75g 100g
Find the right TellShock Label for your purposes.
All values refer to your entire package
including packaging ( including box, pallet,...).
1. First of all, please select the weight.
2. choose the m³ volume.
You can use our m³ calculator to determine the volume.
m³
The suggested values should always be used as a starting point only. Packaging and construction can influence the relationship between drop height and TELLSHOCK activation. Consult with us !
