„ You know how important it is to manufacture your products flawlessly, deliver them on time and without damage. TellShock 2 monitors the vertical axis for shocks and is only activated when attached to the transported goods. This makes the indicators uncomplicated to ship and easy to handle... ”
Nadja Weißkopf Team Transport Monitoring
Florian Meier Packaging Consultant
1
axe
monitoring
14.000
KG max. weight
whole package
304+
m³ max. volume
whole package
5
G min.
sensitivity
75
G max.
sensitivity
yes
can be activated
STRÖBEL TIP
We recommend TellShock 2 especially if you have products that are very heavy and where transport damage can mainly occur during loading and unloading.Matthias Mandel Sales Manager
TECHNICAL DATA
|
1 axis vertical - detection at an angle of 0 to 45° to the axis |
| display | up/down |
| sensitivity | 5g 10g 15g 25g 37g 50g 75g |
| shock duration | 0,5 – 50ms |
| for weight | 0 – 14.000 kg |
| for volume | 0,14 – 304+ m³ |
| tolerance | +/-15% |
| reaction to | single impact |
| operation | mechanical |
| can be activated? | YES when attached |
| security | tamper-proof, consecutive serial number with barcode |
| how often usable? | once |
| mounting location on package | outside on package |
| operating range | -25 °C bis + 80 °C |
| shelf life | 2 years |
| storage conditions | room temperature |
| mounting type | acrylic , self-adhesive |
| dimensions | 42,93 x 42,93 x 6,35 mm |
| PU | 100 pieces / carton |
ADVANTAGES TellShock 2
immediate display
potential damage is instantly indicated by TellShock 2 and logged at destination
up to 50% less transport damage
reduce the occurrence of transport damage in many cases by more than 50%.
avert damage claims
possible damage claims can be reduced or avoided.
easier claims settlement
damage settlement takes place mainly between the carrier and the recipient.
Increase the trust of your customers
customer satisfaction improves as it is ensured that the goods arrive intact.
Triggering Behaviour
When TellShock 2 turns red...
The triggering behaviour of the TellShock 2 is primarily designed for the vertical (perpendicular) impact axis. The TellShock 2 is triggered in the shock angle range between 0° and 45° to the vertical axis. The indicator window facing the shock direction turns red.

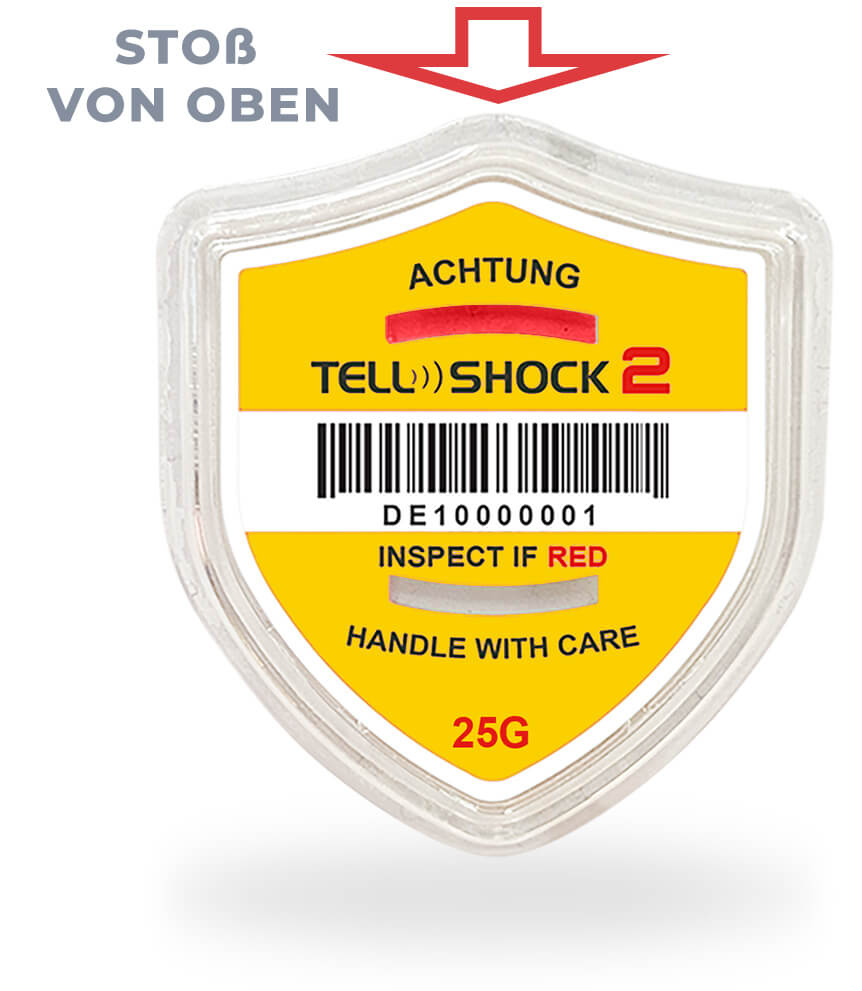

- upper window red = push from above

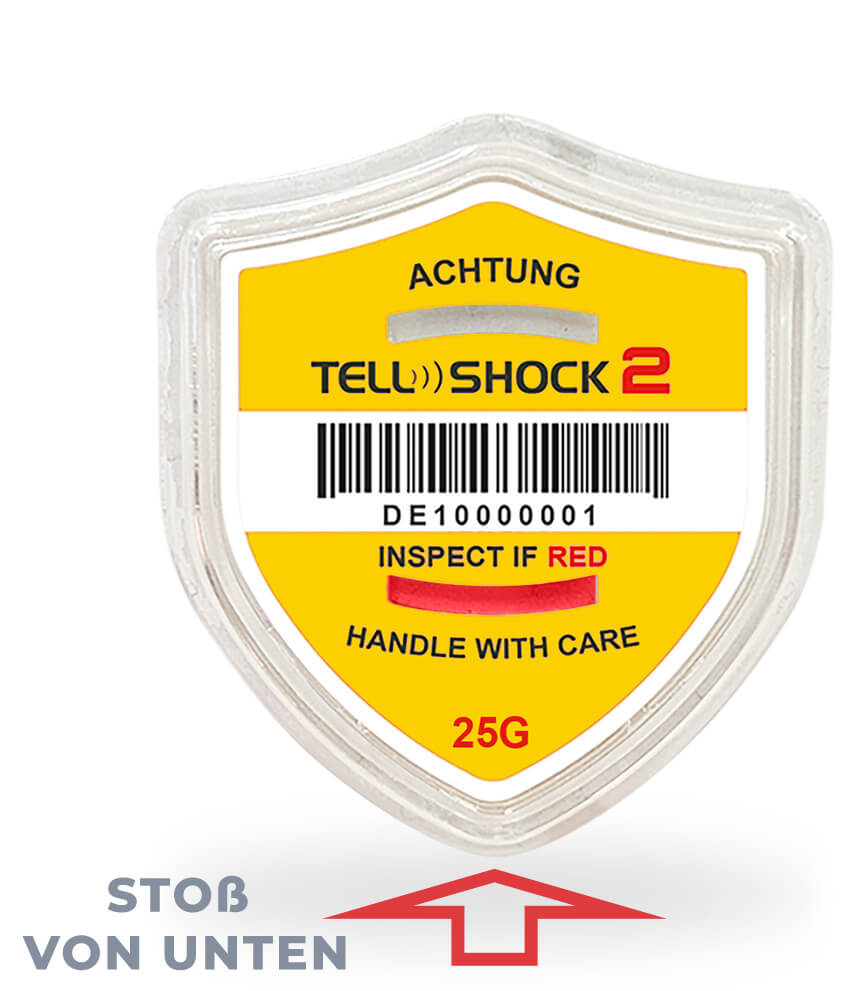

- lower window red = push from below

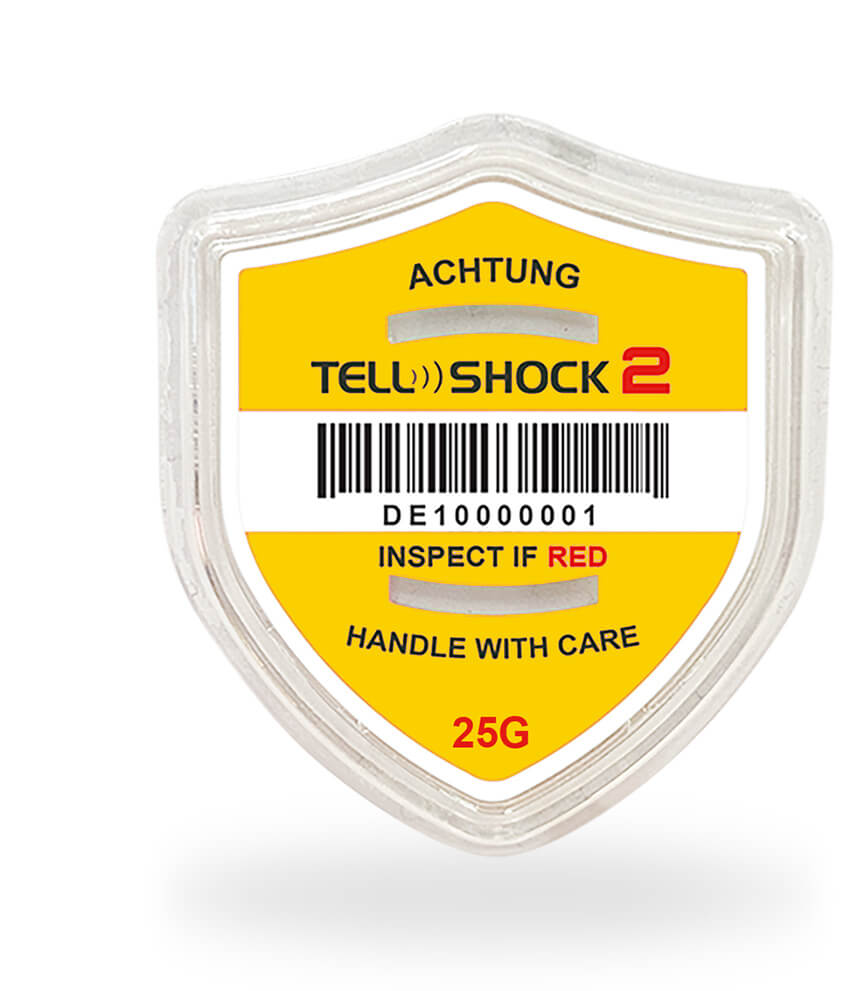

This red indicator cannot be reversed. It is immediately obvious that your product has been handled improperly. Packages with a non-activated (= WHITE) indicator have normally survived transport without damage. Your customer's incoming goods inspection can focus on packages with activated (= RED) indicators.
Note
Under certain circumstances, it is possible that damage has occurred without the indicator having been activated. Likewise, it is possible that an indicator has turned red without any damage having occurred to the packaged goods.
The freight process in 5 steps
How to integrate TellShock 2 into your shipping concept
STRÖBEL IMPORTANT INSTRUCTIONS
Be sure to share the following information with your clients:
How to attach
Correct placement
TellShock 2 Indicators should always be placed on the long side towards the corner of the packaged goods. The recommended height is approx. 10-20 cm from the bottom of the pallet or package.
Never place TellShock 2 indicators on the top or in the middle of the side wall. These sides can have high vibrations which may cause the shock indicator to be triggered.
It's this easy

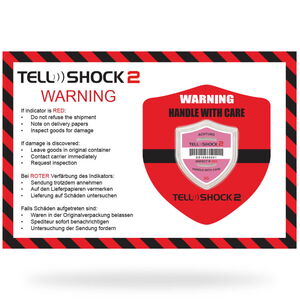

- stick the large warning sticker on the packaged goods
- stick the TELLSHOCK Label Indicator on the marked field on the warning label

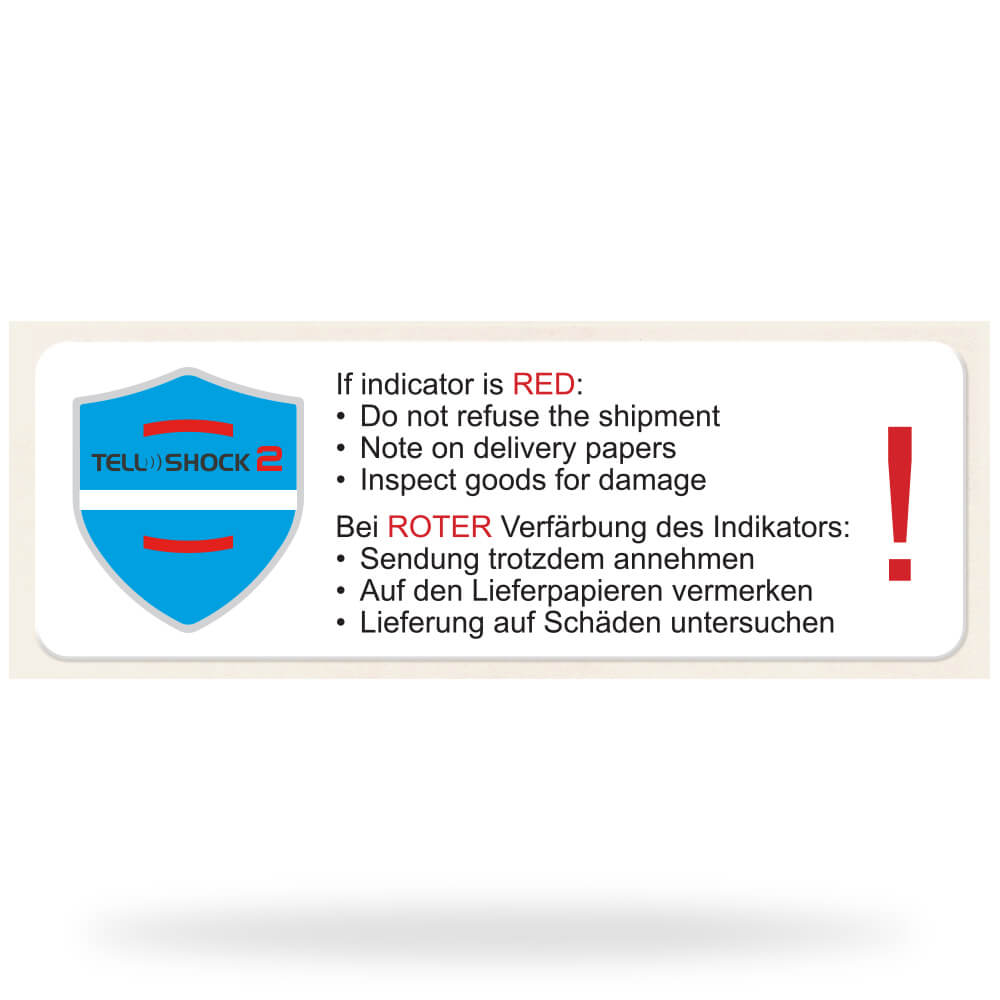

- stick the delivery note sticker on your outgoing delivery note
- write the serial number of the TELLSHOCK Indicator on the shipping documents
- apply the optional warning tape
Multiple TELLSHOCK?
The best control is achieved by attaching two TELLSHOCK indicators. For transport goods of approx. 1.00 m edge length and above, you must use one TELLSHOCK indicator on each of the diagonally opposite sides at the same distance from the floor.
For tall packages, it is recommended to place a TellShock 2 indicator at an upper corner of the package to register impacts at the upper edge.
PACKAGE CONTENTS

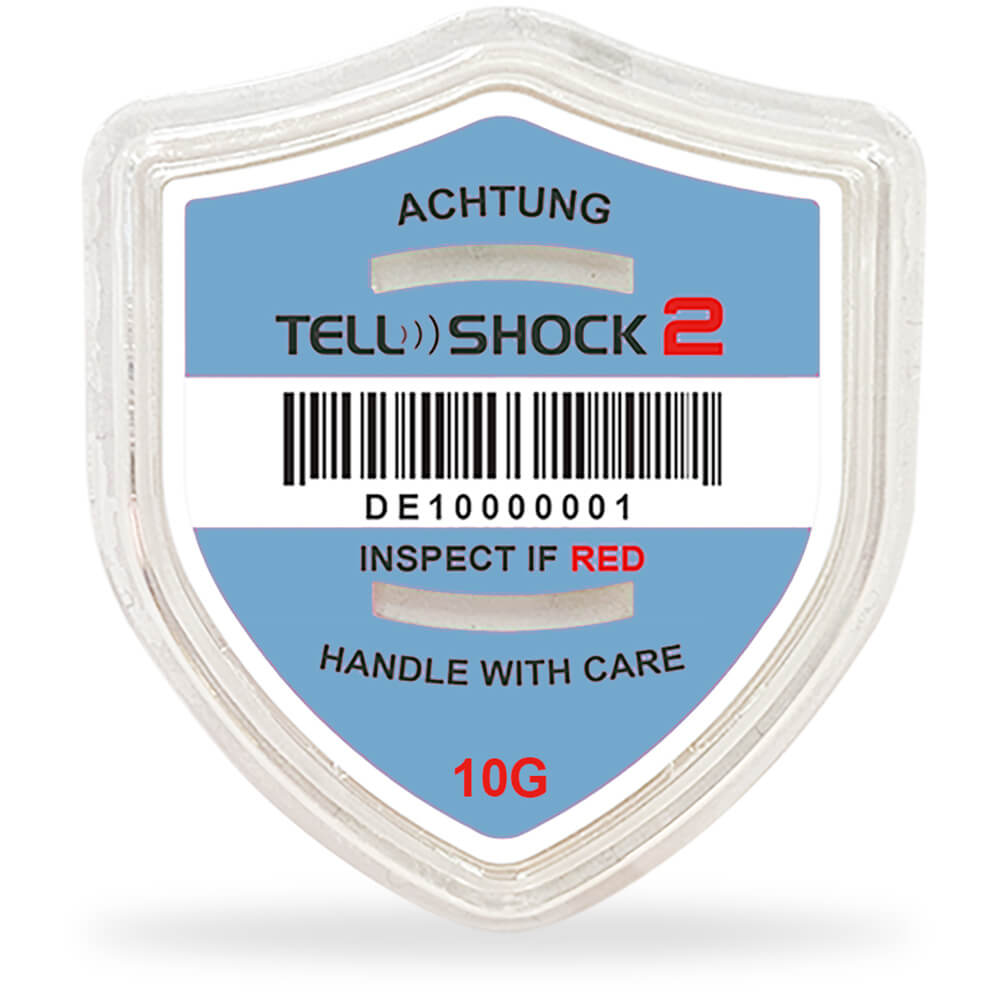

Quantity: 100 pieces / carton and each TellShock 2 unit consists of...

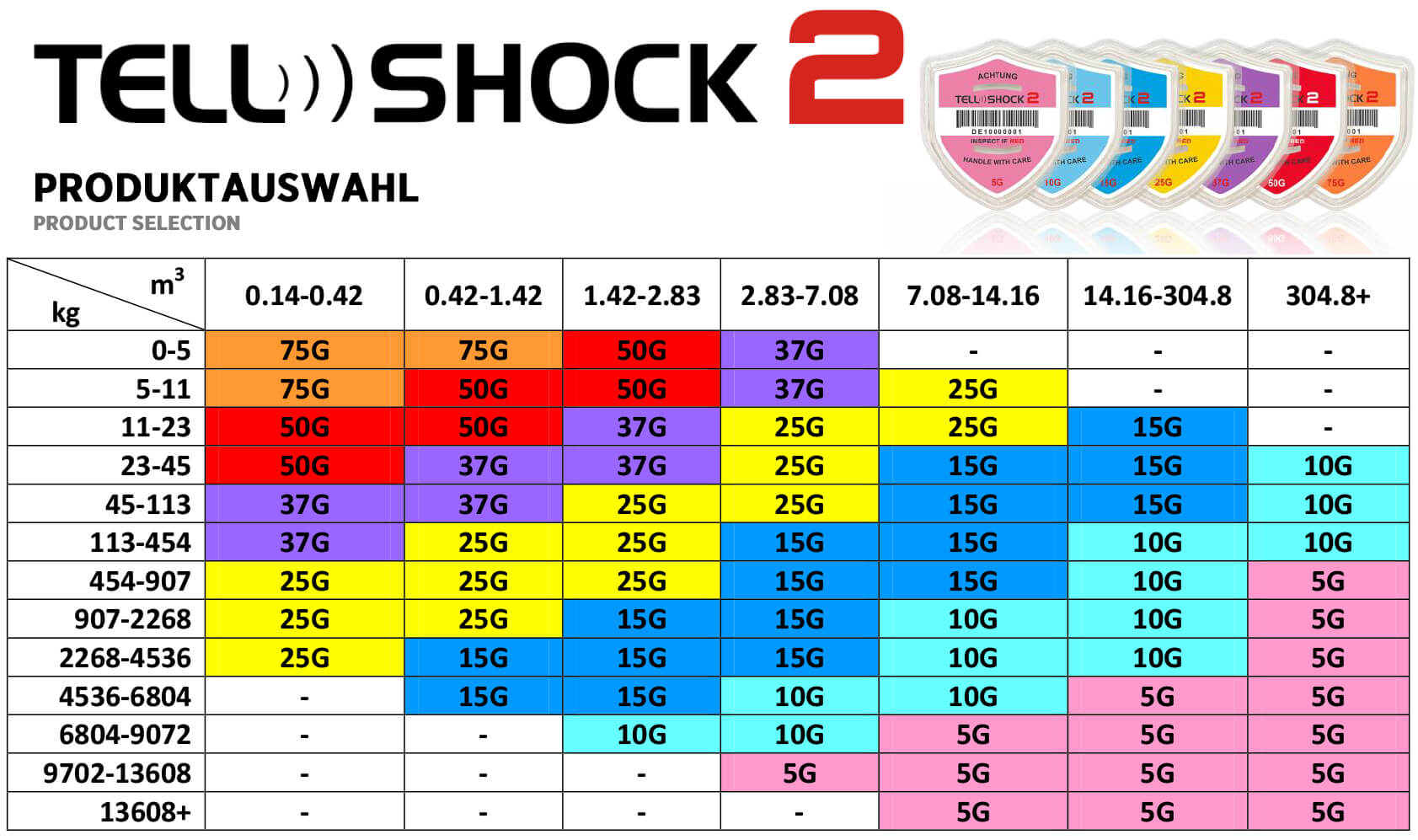

CONFIGURATOR
All TellShock 2 are available in the following sensitivities
5g 10g 15g 25g 37g 50g 75g
Find the right TellShock 2 for your purposes.
All values refer to your entire package
including packaging ( including box, pallet,...).
1. First of all, please select the weight.
2. choose the m³ volume.
You can use our m³ calculator to determine the volume.
m³
The suggested values should always be used as a starting point only. Packaging and construction can influence the relationship between drop height and TellShock 2 activation. Consult with us !
